Brackish Water Reverse Osmosis – Basic
MAK Water’s Brackish Water Reverse Osmosis – Basic (BWROB) plants are pre-engineered products, designed to suit simple applications where a high level of electrical instrumentation and controls is not required, and the feed water quality falls within the parameters defined in this data sheet.
The standard treatment process involves pre-filtration (5 and 1 micron cartridge filters) and RO desalination. The BWROB is designed to operate continuously until the permeate tank is filled, or feed water is unavailable.
The BWROB is available with a pre-determined number of standard options and is supplied with a generic documentation package.
If you have specific requirements, contact us to discuss our custom designed desalination plants or ask about our hire options.
STANDARD SPECIFICATIONS
Parameter |
Units |
BWROB-010 |
BWROB-015 |
BWROB-025 |
BWROB-030 |
BWROB-035 |
BWROB-050 |
Permeate flow rate |
m3/day |
10 |
15 |
25 |
30 |
35 |
50 |
Permeate recovery rate |
% |
40~70 (varies according to feed water quality and RO configuration) |
Ambient design temperature |
°C |
1~35 (1~43 with optional air conditioned container) |
Feed water inlet pressure |
kPa |
min. 200~500 max. (flooded suction only with optional low pressure feed pump) |
Permeate discharge pressure |
kPa |
~40 |
Brine discharge pressure |
kPa |
~40 |
Power supply |
- |
AC 240V, 1 Phase, 50Hz |
Power consumption (approx.) |
kW |
2 |
2 |
2 |
3 |
3 |
5 |
Control panel IP rating |
- |
IP50 |
Skid dimensions (approx.) |
mm |
1,500W x 1,700H x 680D |
Skid weight (approx.) |
kg |
150 |
160 |
170 |
180 |
190 |
200 |
Container size (optional) |
- |
10’ ISO |
UV disinfection (optional) |
UV dose |
>40 mJ/cm2 @ 90% UVT |
Distribution pump set (optional) |
m3/hr @ 300kPa |
1.04 |
1.56 |
2.6 |
3.13 |
3.65 |
5.21 |
Parameter |
Units |
Feed water |
Permeate |
Total dissolved solids (TDS) |
mg/L |
<3,000 |
<500 (typical) |
Temperature |
˚C |
15~30 |
- |
pH |
pH units |
5~8.5 |
- |
Total suspended solids (TSS) |
mg/L |
<5 |
<1 |
Particle size |
µm |
>1 |
- |
Silt density index |
- |
<5*1 |
- |
Free chlorine |
mg/L |
0 (<2 with optional GAC filter) |
0 (0.2~2.0 with optional chlorine disinfection) |
Dissolved iron |
mg/L |
<0.1 |
- |
Dissolved manganese |
mg/L |
<0.1 |
- |
Biological oxygen demand (BOD) as O2 |
mg/L |
<10 |
- |
Chemical oxygen demand (COD) as O2 |
mg/L |
<10 |
- |
Total organic carbon (TOC) |
mg/L |
<3 |
- |
*1Increased membrane fouling will occur where feed water SDI exceeds 3
STANDARD INCLUSIONS + OPTIONS
✓= Standard Supply o = Optional Supply
Equipment |
BWROB-010 |
BWROB-015 |
BWROB-025 |
BWROB-030 |
BWROB-035 |
BWROB-050 |

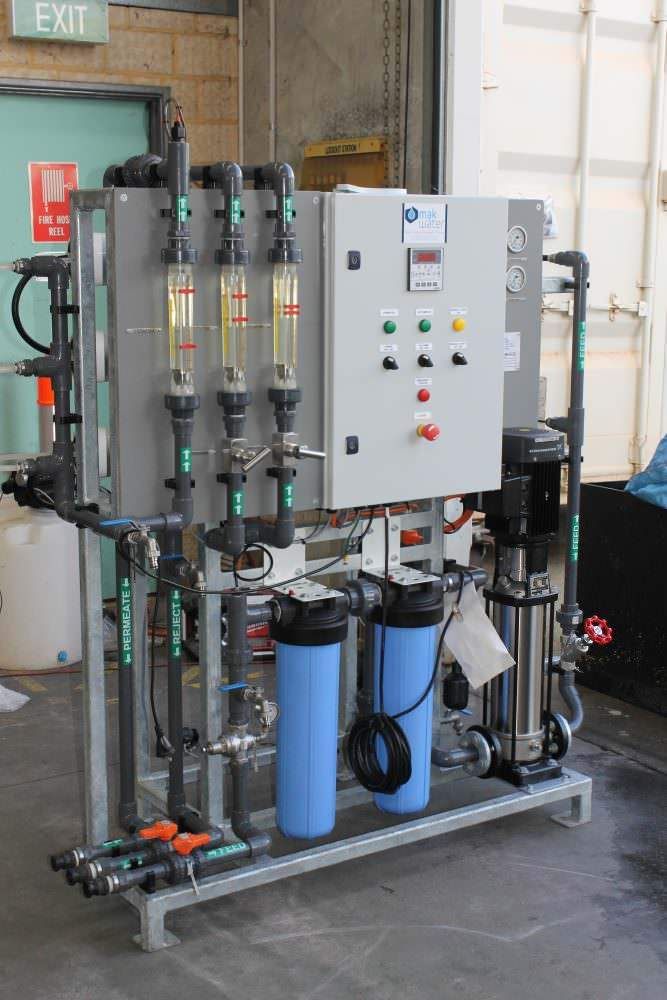

Skid mounted plant |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
uPVC pipe work with isolation, non-return and sampling valves |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Inlet pressure regulating valve*1 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Solenoid valves (inlet feed and CIP/flush) |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Low pressure feed pump |
o |
o |
o |
o |
o |
o |
High pressure RO pump |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
RO pressure vessels and membranes with reject control valve |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Concentrate recirculation with throttling valve |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Hose connections for membrane clean in place (CIP)*2 |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Control panel with indicator lamps, isolators and e-stop |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Pre-RO treatment |
Cartridge filters (5 and 1 µm) |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
Auto-backwashing GAC filter*3 |
o |
o |
o |
o |
o |
o |
Anti-scalant dosing*4 |
o |
o |
o |
o |
o |
o |
Post-RO treatment |
Flow paced chlorine dosing |
o |
o |
o |
o |
o |
o |
UV reactor with ballast*5, 6 |
o |
o |
o |
o |
o |
o |

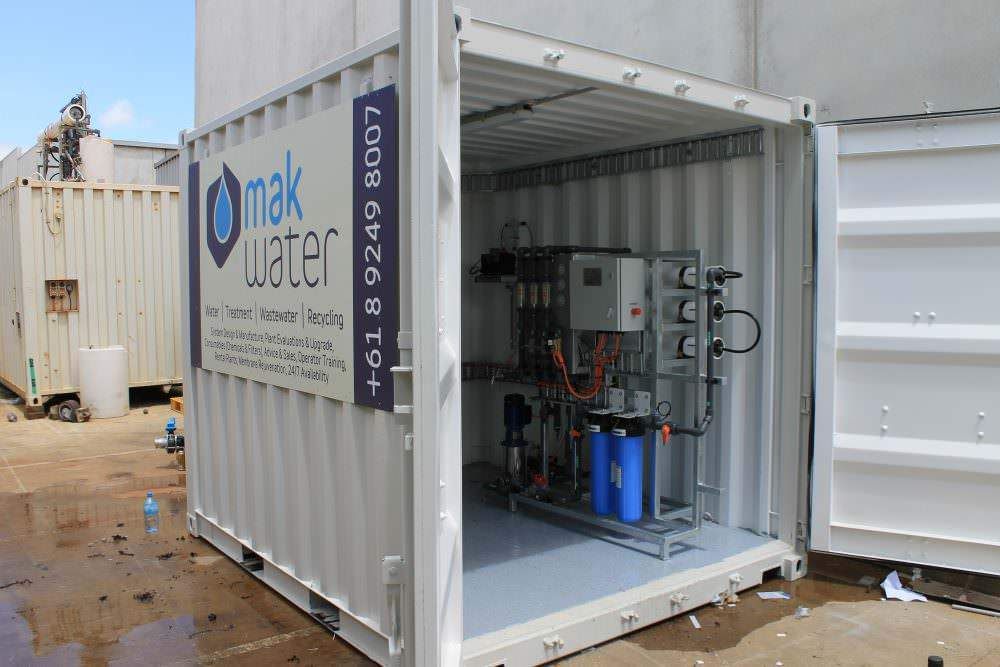

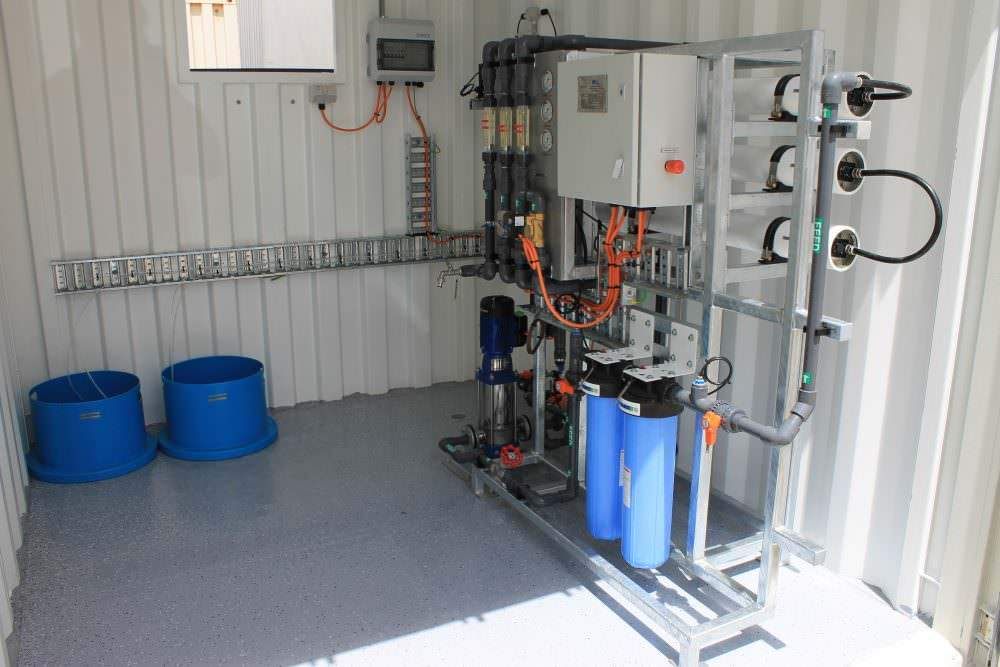

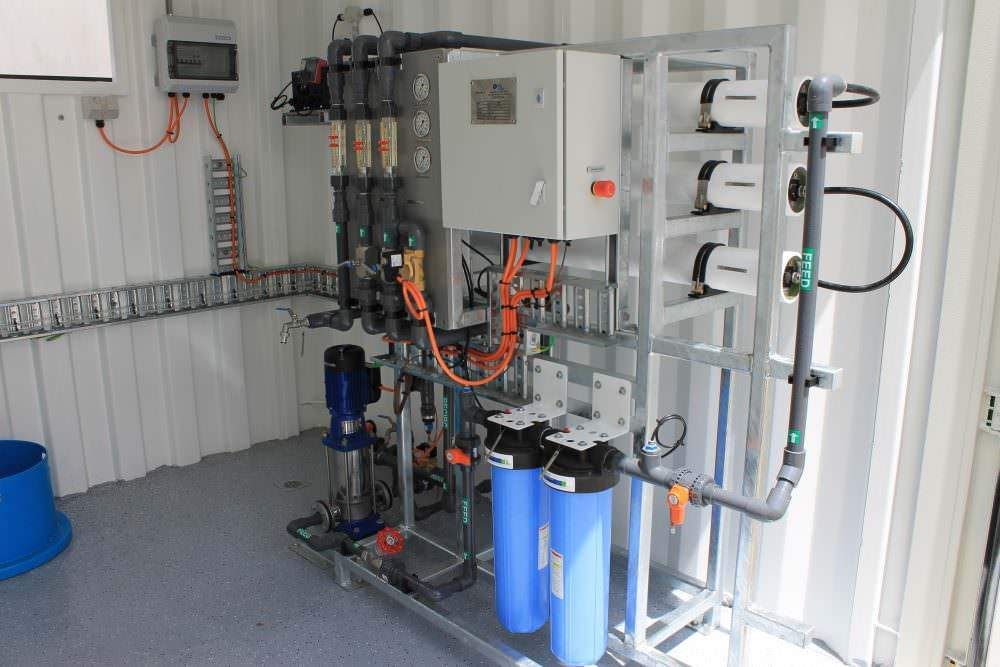

Containerised system with overhead lighting and air conditioning |
o |
o |
o |
o |
o |
o |
Permeate distribution pump with controller*5 |
o |
o |
o |
o |
o |
o |
*1Not supplied where low-pressure feed pump option is taken, *2CIP tank and pump by others, *3For free chlorine removal, *4May be required depending on feed water quality, consult MAK Water, *5Separate power connection required, *6UV system supplied loose for installation by others
Instrumentation |
Included |
Level switches |
Feed water tank |
✓ |
Permeate tank |
✓ |
Anti-scalant dosing tank (optional) |
✓ |
Chlorine dosing tank (optional) |
✓ |
Pressure switches |
Low pressure feed pump discharge (optional) |
✓ |
High pressure RO pump discharge |
✓ |
Permeate distribution pump (optional) |
✓ |
Pressure gauges |
Feed water inlet or low pressure pump discharge (optional) |
✓ |
GAC filter discharge (optional) |
✓ |
Cartridge filter discharge |
✓ |
High pressure RO pump discharge |
✓ |
Brine discharge |
✓ |
Flow indicators (rotameters) |
Permeate |
✓ |
Reject |
✓ |
Recirculation |
✓ |
Conductivity meter |
Permeate |
✓ |
