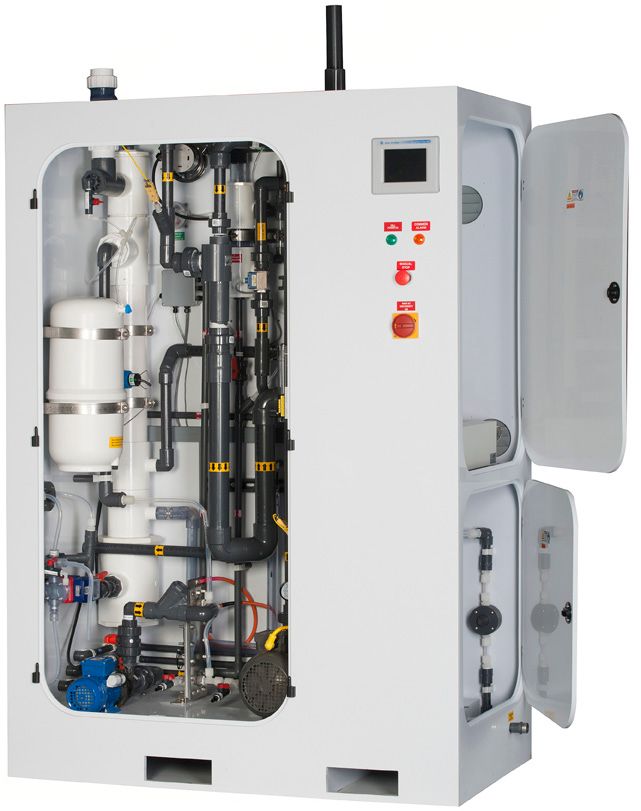

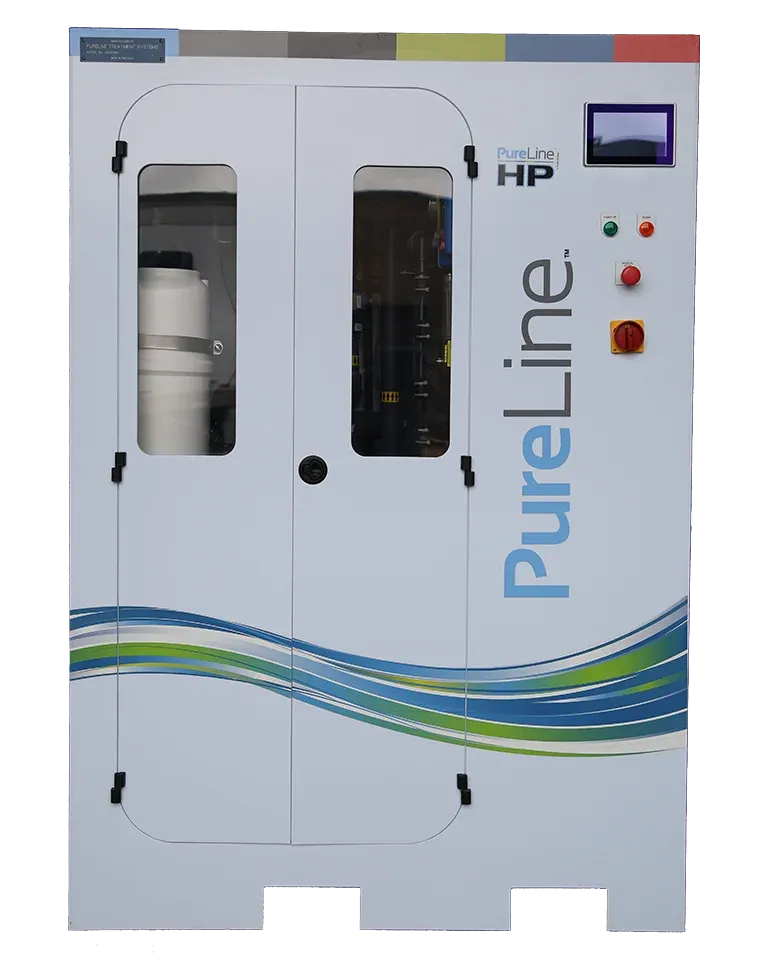

Chlorine Dioxide Generator – HP Series

The HP series generator from PureLine, supported by MAK Water, is ideal for applications requiring high purity Chlorine Dioxide, for example, food & Beverage production, healthcare and pharmaceutical applications.

Using PureCide®E, a highly concentrated single-liquid precursor, PureLine’s patented electrochemical cells efficiently produce 99.5% pure, chlorine-free, ClO2 solution (active ClO2 versus bi-products in water). Pure ClO2 is delivered on demand, safely, and efficiently without the need for an external storage tank.

The system is capable of feeding multiple dosage points simultaneously allowing for several applications from a single generator. The HP series is a common platform system allowing for cost effective, on-site capacity upgrades that grow with your operation/facility. With multiple safety interlocks, available reporting and communication options, and expert engineering and service support, the HP series is truly the bench mark in safe and reliable ClO2 generation.

• Single-liquid precursor PureCide®E (no acid)
• Produces 99.5% pure ClO2
• pH neutral solution
• Long life electrolytic cells (no cartridges)
• Multiple control options (flow, residual, permissive, timers, manual)
• Customizable and scalable to 227kg/day
• Low operating cost – enhanced ROI



Parameter

Units

PureLine HP Model

HP-3

HP-10

HP-20

HP-40

HP-100

HP-250

HP-500

ClO2 Output Capacity

kg/day

1.36

4.54

9.07

18.14

45.36

113.40

226.80

Electricity requirement



220 VAC, 1PH, 30A (<15A NLD)

415 VAC, 3PH, 50A

Custom

Inlet water



Clean/filtered min 350 kPa (1.89l/min – 11.36l/min)

min 350 kPa  (3.78 -18.93l/min)

Custom

PLC & HMI



Allen Bradley PLC and Color Touch Screen

Chemical usage



PureCideE – 6.04kg / 1kg produced ClO2

Cabinet



White polypropylene

Stainless steel

Custom

Dimensions

mm

1327 x 1918 x 718

Custom built

Weight

kg

227

Custom built

Co-products



20% NaOH solution (0.037l/min-0.378l/min), Spent chemical (0.037l/min - 0.189l/min), H2 safely diluted to <0.5 vol% and

RO waste (1.89/min – 3.78l/min)

Custom built

HS Code



8421.21.000



STANDARD INCLUSIONS + OPTIONS

Equipment

ALL HP Models

Self contained unit

CA Concentrated Acid package

o

Input chemical storage tanks

o

Produced ClO2 break tank

o



Instrumentation & Controls



Control Panel compliant with AS/NZS 3000, IP55

PLC control system with HMI touch screen

Full redundancy PLC control system

o

Flow pacing capability utilising external flowmeter signal)

Water flow meter

o

Production tracking and remote system monitoring

o

PCA-970 Chlorine Dioxide Residual Monitoring System

o
