Rotary Drum Screen

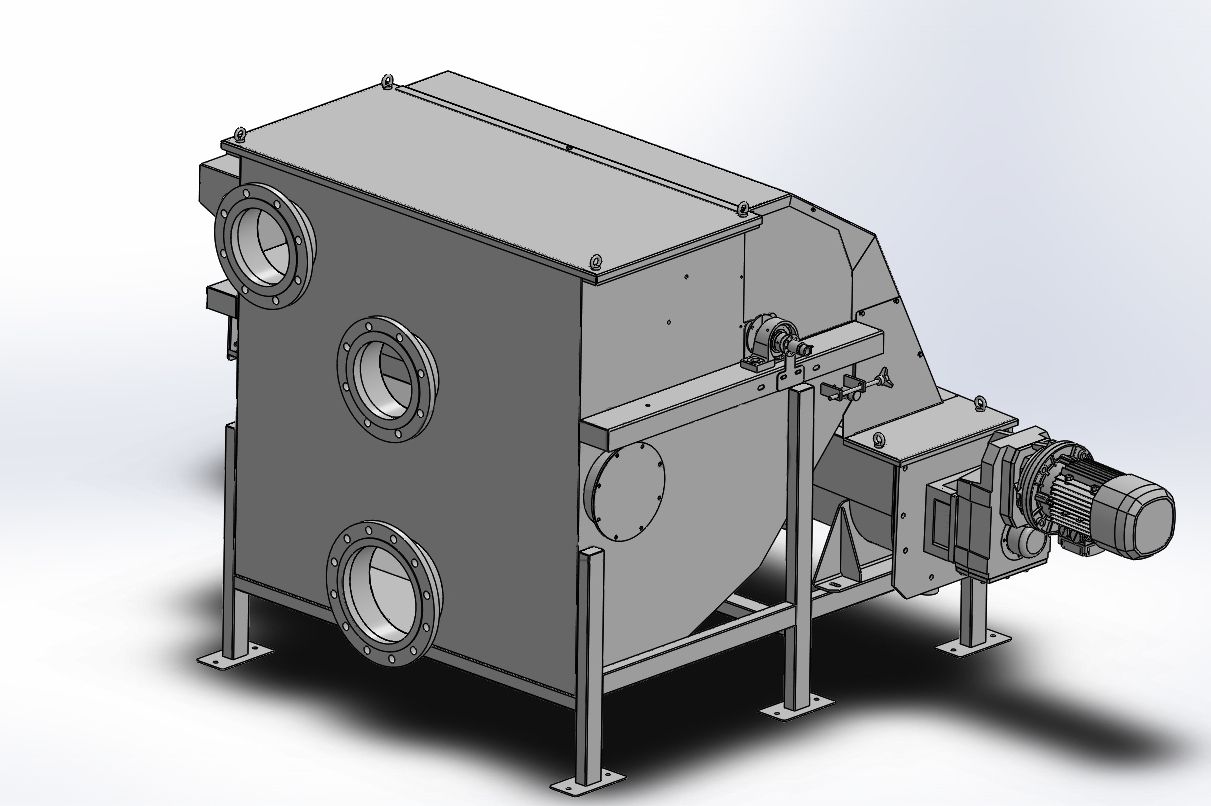

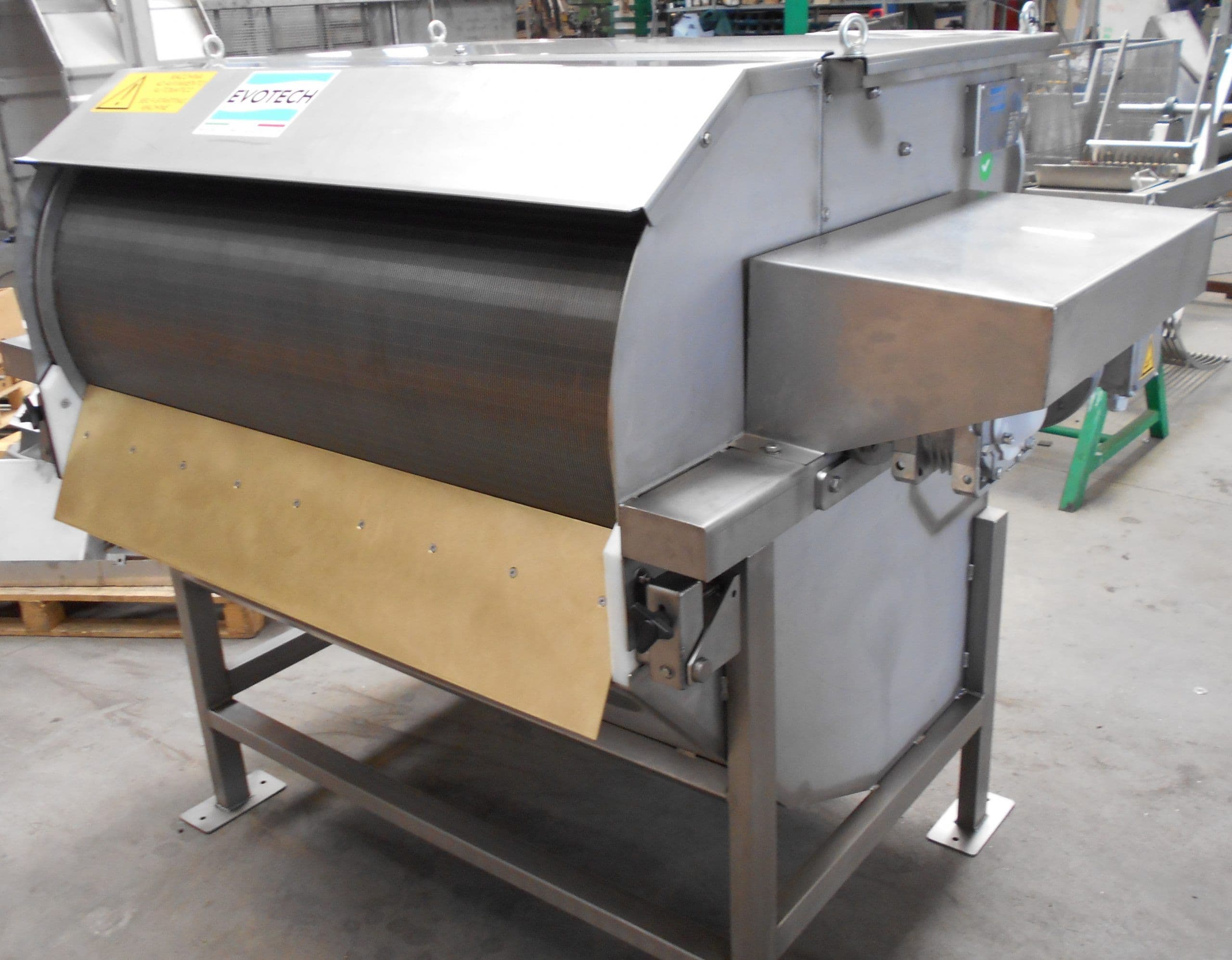

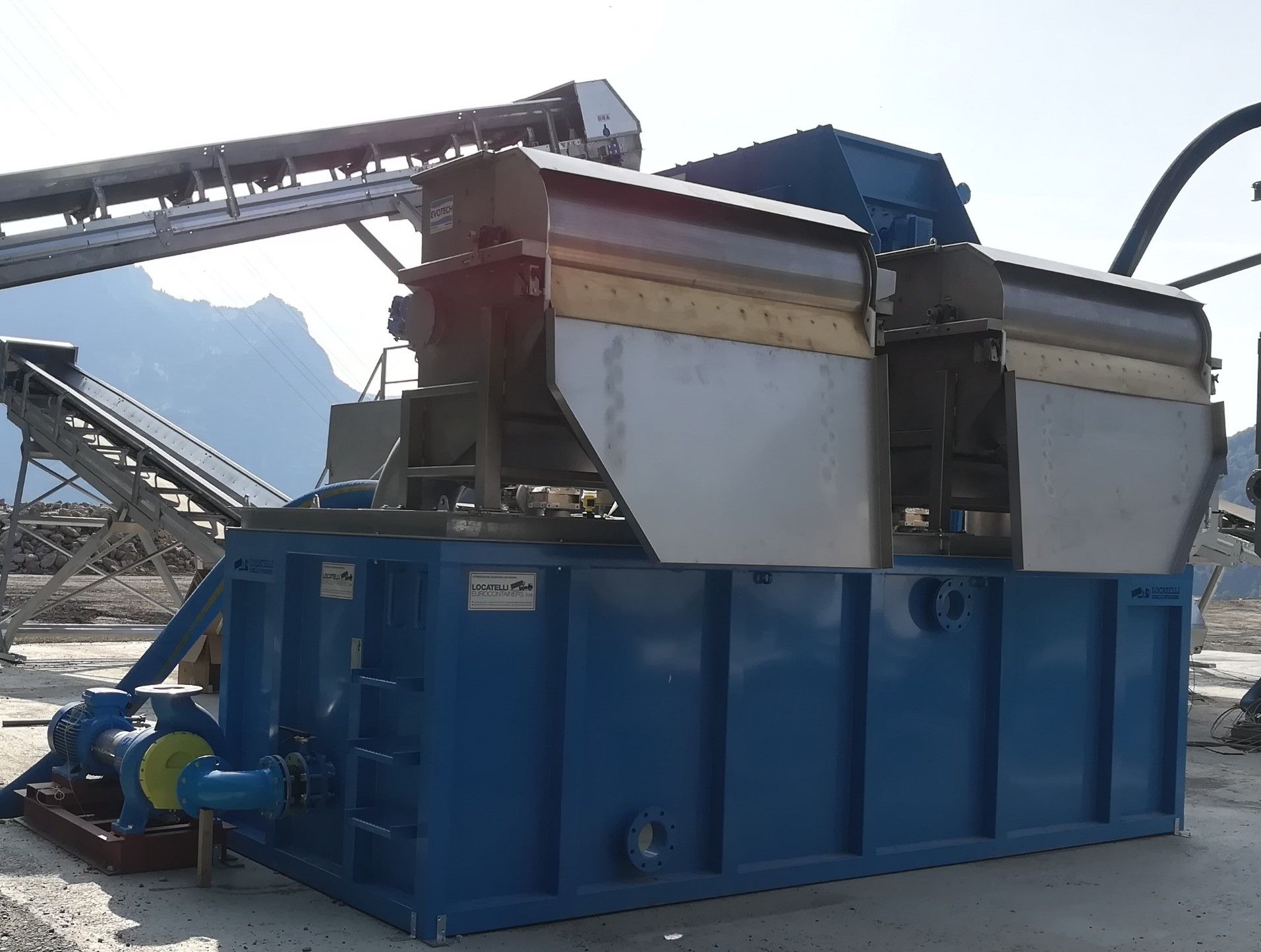

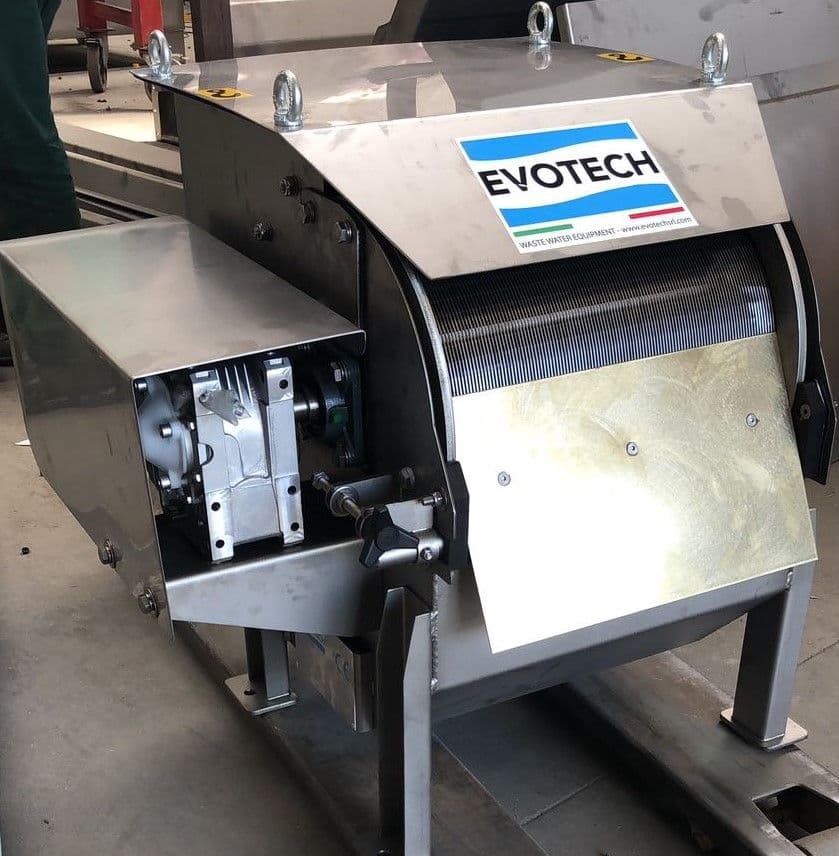

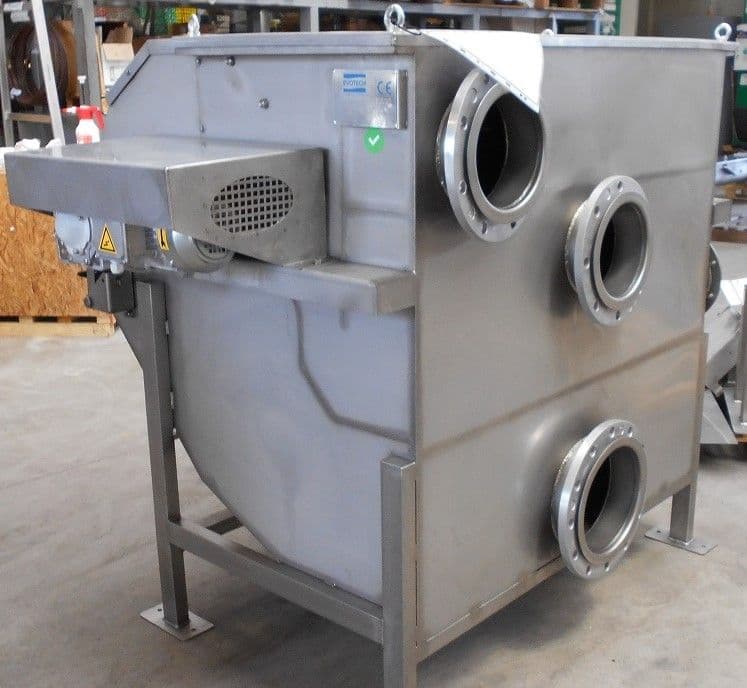

The Rotary Drum Screen (Product ID: FTR) is designed to remove solids from industrial wastewater streams. It features a rotating screening drum installed within a tank. Wastewater enters through an inlet port and contacts the drum via a specially designed flow distributor, while filtered water exits through an outlet port.

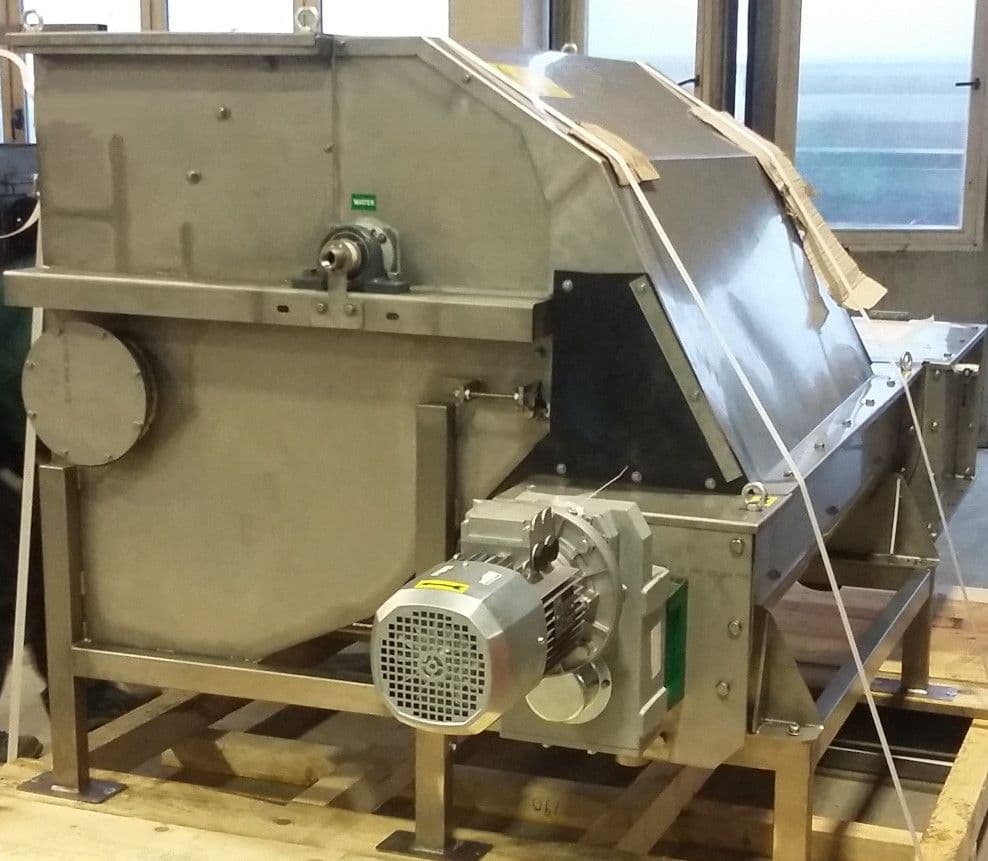

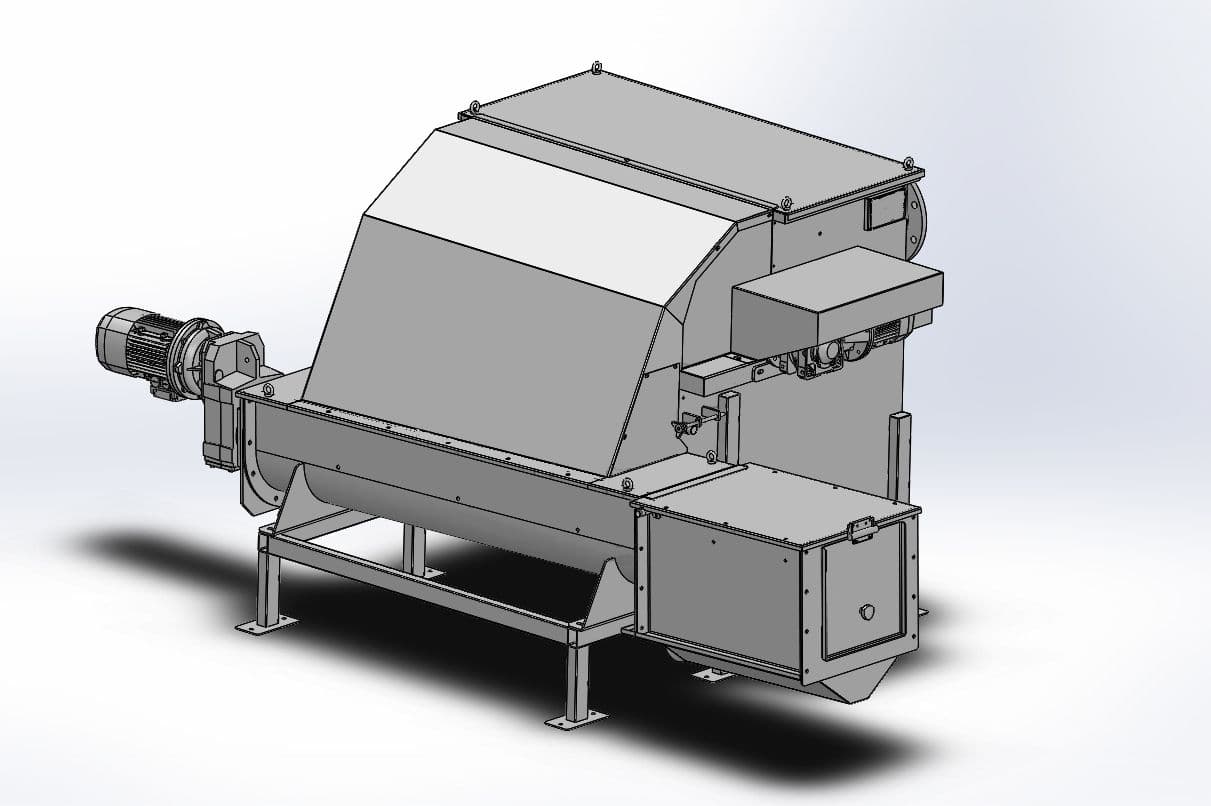

Solids captured on the drum's external surface are removed by a fixed scraper, and an internal washing system keeps the screen element clean. An optional integrated Screw Compactor (SCC) is available to wash and dewater the captured screenings.

Advantages:

Low investment and maintenance costs
Compact design for limited installation space
Simple operation and maintenance
Self-cleaning drum ensures continuous performance

The Rotary Drum Screen has a capacity range from 3 to 1,700 m³/h. It is available in screen options including wedge-wire ranging from 0.25 to 2.50 mm and rounded holes ranging from 1.5 to 2.5 mm.

Technical Specifications

Standard Specifications

Parameter			Unit	FTR 04mini	FTR 08mini	FTR 30	FTR 40	FTR 60	FTR 90	FTR 120	FTR 140	FTR 150	FTR 180	FTR 200	FTR 3000
Capacity*¹	Wedge wire (mm)	0.25	m3/h	3	6	14	19	29	44	58	68	73	88	98	234
		0.5		7	14	31	41	63	95	128	149	160	192	214	513
		0.75		10	19	44	59	90	136	182	213	228	274	305	731
		1		12	24	54	73	112	169	226	264	284	341	379	908
		1.25		15	29	66	90	137	207	277	324	347	417	464	1,111
		1.5		17	34	76	103	156	236	317	370	397	477	531	1,271
		2		19	38	87	117	179	270	362	423	454	545	607	1,453
		2.5		22	44	99	134	203	308	412	482	517	621	691	1,655
	Rounded holes (mm)	Ø1.50		5	10	23	30	46	70	94	110	118	141	157	236
		Ø2.00		6	12	27	36	55	83	112	131	140	168	187	282
		Ø2.50		9	19	42	57	86	130	175	204	219	263	293	440
Dimensions*²	Drum diameter Ø			300	300	628	628	628	628	628	628	628	628	628	914
	LC – drum length			415	800	300	400	600	900	1,200	1,400	1,500	1,800	2,000	3,000
	B – overall length			818	1,208	894	1,005	1,200	1,492	1,790	1,987	2,086	2,390	2,587	3,800
	C – overall height			700	700	1,362	1,362	1,455	1,455	1,455	1,455	1,455	1,498	1,498	2,132
	E – overall width			763	800	1,210	1,210	1,210	1,210	1,210	1,210	1,210	1,210	1,210	1,550
Inlet flange size*³			DN	80	80	80	100	100	200	200	200	200	200	300	2x 350
Outlet flange size*³				100	100	100	200	200	250	250	250	250	250	400	2x 400
Overflow flange size*³				65	80	100	100	150	150	200	200	200	300	300	2x 350
Washwater connection*^{2, 4}			Inch	0.5	0.5	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	1.5
Installed motor power*²			kW	0.18	0.18	0.18	0.25	0.37	0.37	0.55	0.55	0.55	0.55	0.55	1.1
Empty weight*²			kg	95	125	180	245	285	325	365	490	505	585	625	1,350
Washwater requirement*^{2, 4}			L/min	23	39	23	23	31	39	55	70	70	86	101	148

*¹ Based on wastewater containing 200 mg/L influent TSS.

*² For FTR only, not including optional integrated Screw Compactor SCC. Consult MAK Water for details for FTR with optional integrated SCC.

*³ Flanges are lap joint type, 15 mm thick, according to AS4087 PN16.

*⁴ Washwater at 3 bar pressure.

Standard Inclusions and Options

Equipment				Standard Supply	Optional Supply
Rotary Drum Screen	Screen drum cleaned by adjustable brass scraper blade			✔	-
	Adjustable overflow system			✔	-
	Lifting eyebolts			✔	-
	Washing bar with bolted nozzles for screen cleaning			✔	-
	Cover over drum			✔	-
	Motor	TEFC, IEC, IP55, class F, 415V, 50Hz, 3ph		✔	-
	Gearbox	Brand: Bonfiglioli, Type: worm		✔	-
Machine carpentry, rotating drum, inlet, outlet & overflow flanges, and optional discharge chute and optional Screw Compactor	SS304, bolts A2 (SS304)			✔	-
	SS316L, bolts A4 (SS316)			-	✔
Discharge chute (optional)	Standard length (length up to 0.5x dimension C)			✔	-
Discharge chute (optional)	Custom length (client to specify)			-	✔
Integrated Screw Compactor (SCC)*¹ (optional)	With shaftless screw, 1.5 kW motor, Nord parallel shaft gearbox, two ½” washwater connections with manual valves, PE pipe for return of liquid from drainage & compaction modules, watertight section between FTR and SCC		Screw in HCS	-	✔
			Screw in SS304	-	✔
			Screw in SS316	-	✔
Surface treatments	Stainless steel parts: stripping with acid solution, passivation with glass particles, final surfaces cleaning with anti-dust oil. Carbon steel parts: sandblasting SA 2.5 for external anti-rust paint RAL 5015			✔	-

*¹ Integrated Screw Compactor not available for FTR-04mini and FTR-08mini

Instrumentation & Controls	Standard Supply	Optional Supply
Screen tank level sensor, 3-prong conductive probe	✔	-
Solenoid valve kit(s) for washing system(s), 24VDC*¹	-	✔
Control panel, compliant with AS/NZS 3000, 316SS enclosure with inner door, IP56 for outdoor installation, touch screen interface, supplied loose, field wiring between Control Panel and equipment by others	-	✔

*¹ One (1) solenoid kit for FTR only, three (3) solenoid kits for FTR with integrated SCC

Disclaimer: We continuously update and improve our products and services, contact us for more detailed information or to confirm specifications. MAK Water takes no responsibility for any errors resulting from the use of information contained on this website.
