Septage Receival Station

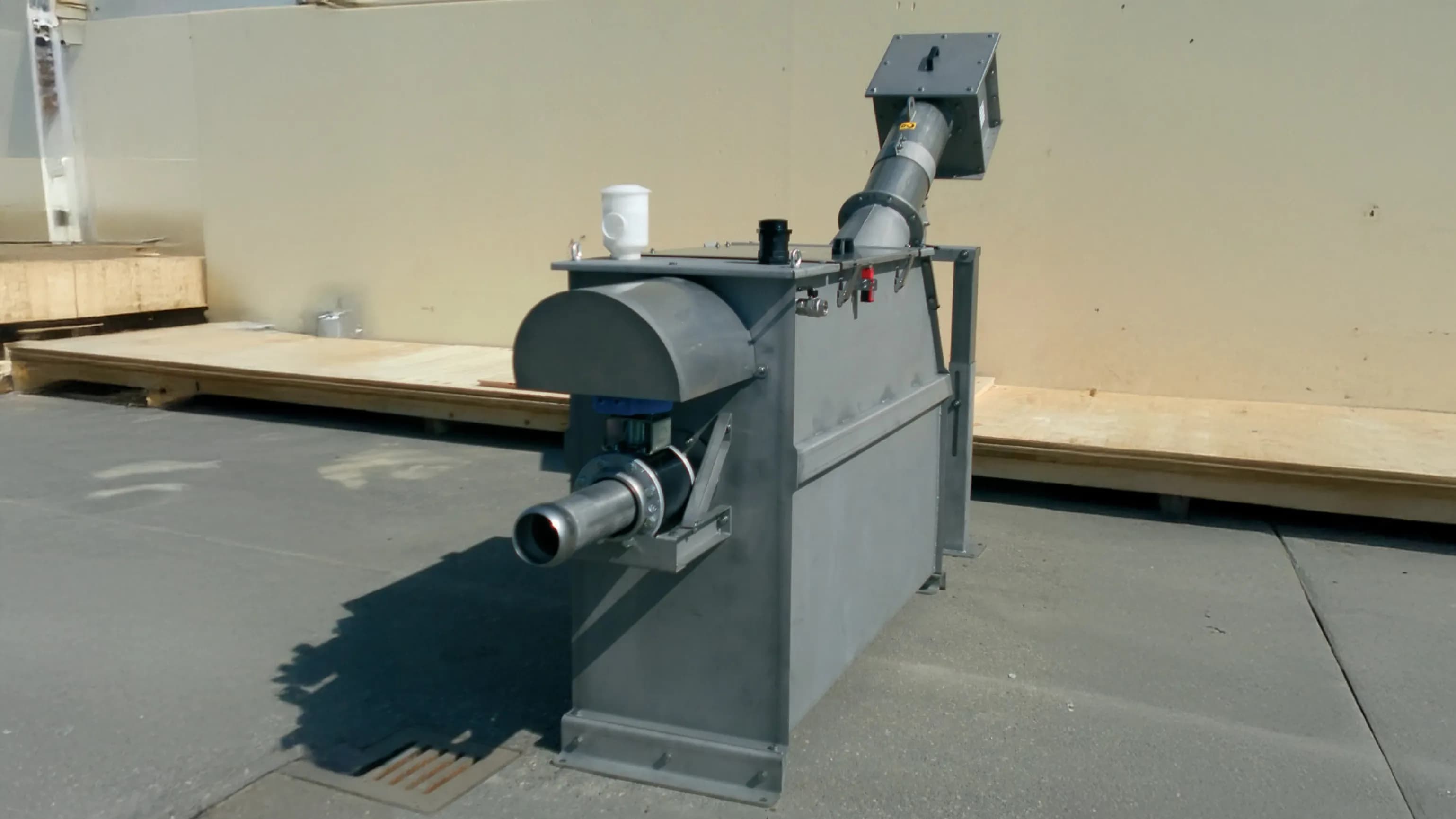

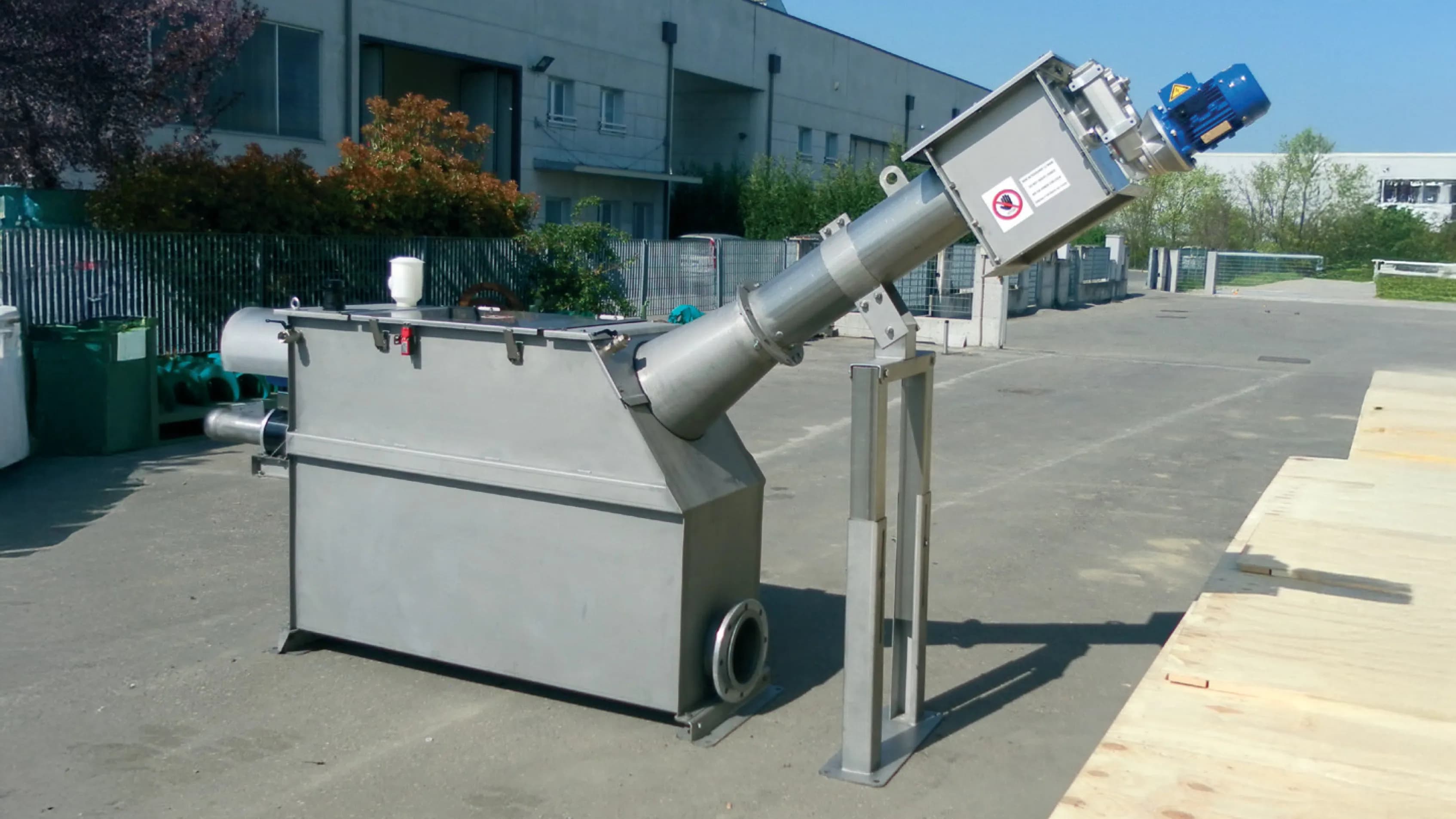

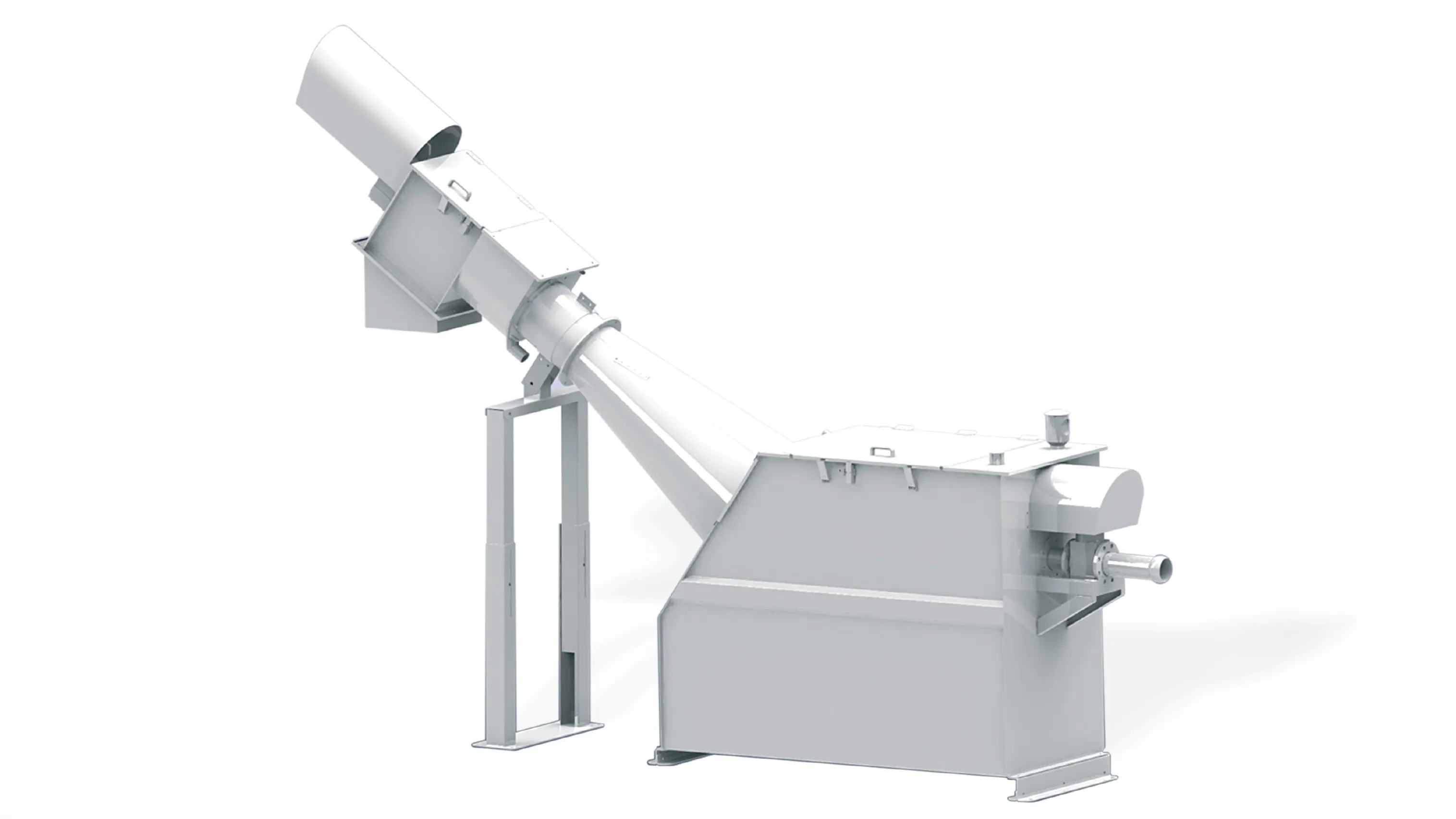

The Septage Receival Station (Product ID: SSBot) is a compact unit designed to provide pre-treatment screening of tankered septage or other liquid waste prior to entering wastewater treatment plants. The SSBot inlet is fitted with a quick-connect camlock attachment and an electro-mechanical valve. Wastewater discharged directly from the tanker is filtered by a screen basket and screw that removes the solids.

Screenings are washed, drained and compacted prior to being discharged into a bin or bagged by an optional Longopac automatic bagging system. Hard wearing nylon brushes are fixed to the screw for continuous self-cleaning of the screen basket. Hinged covers allow easy inspection and servicing.

FEATURES & ADVANTAGES

Low operating costs and maintenance
Compact machine & small footprint
Simple Installation
Low residual content of organic matter
Up to 40% reduction in volume & weight of screenings

Technical Specifications

Standard Specifications

Parameter		Unit	SSBot-50	SSBot-75	SSBot-100
Treatment Capacity*¹		m³/h	50	75	100
Dimensions	A	mm	3590	4000	4510
	B		2800	3290	3650
	C		1500	1750	1950
	D		220	220	220
	E		3050	3750	4050
	F		1600	1750	2000
	G		758	957	1140
	H		1280	1440	1600
	M		680	810	856
Inlet connection^*2		DN	DN 100	DN 100	DN 100
Outlet flange size *³		DN	DN 200	DN 200	DN 200
Wash water @ 3 bar		L/min	31	44
Installed motor power, 3ph, 50hz	Screen drive	kW	0.75	0.75	1.1
Screw gear reducer speed		rpm	11	9	9
Empty weight (standard length)		kg	630	780	1000

1. Nominal flow rate 2. Inlet connection is Perrot or camlock fast coupling joint with electrically actuated 2 way ball valve 3. Flange is stainless steel lap joint type, PN16, according to AS4087

Standard Inclusions and Options

✓ = Standard Supplyo = Optional Supply- = Not Applicable

Equipment				Standard Supply	Optional Supply
Screw screen installed in tank	Screen element	3mm or 6mm rounded holes		✓	-
	Screen element	Custom options on special request		-	O
	Integrated screenings compaction (can be deleted as an option)			✓	-
	Screen basket cleaning, bolted nylon brushes			✓	-
	PE breathing valve on screen tank			✓	-
	PVC pipe for returning liquid from compaction zone			✓	-
	Squared outlet spout			✓	-
	Bolted screenings compaction system cover			✓	-
	Lifting eyebolts			✓	-
	Nord drive with compact motor gearbox and cover guards			✓	-
Machine carpentry, inlet connection, outlet flange, drive guard and wear bars for screw. All bolts A4 (316SS)			SS304L	✓	-
			SS316L	-	O
Screw	High carbon steel painted			✓	-
	SS304L			-	O
	SS316L			-	O
Washing systems	Compaction zone with 1/2” manual valve			✓	-
	Sieve basket with 1” manual valve			✓	-
	Tank with 1” manual valve			✓	-
	Transport tube with 1” manual valve			-	O
Automatic Longopac bagging system for screenings with 1x80m long bag				-	O
Overflow outlet (flanged)				-	O
Odour extraction port (flanged)				-	O
Drive motor premium efficiency, IP66				✓	-
Surface treatments ^*1				✓	-

1.Stainless steel parts: stripping with acid solution, passivation with glass particles, final surfaces cleaning with anti-dust oil. Carbon steel parts: sandblasting SA 2.5 for external anti-rust paint RAL 5015

Instrumentation & Controls		Standard Supply	Optional Supply
Safety limit switches for screen tank and compaction zone opening hatches		✓	-
Ball valve with electric actuator, Multi-voltage 24V AC/DC, 27 sec operating time (can be deleted as option)		✓	-
Screen tank level sensor	Conductive probe	✓	-
Screen tank level sensor	Ultrasonic or hydrostatic	-	O
Solenoid valves for washing systems 24VDC		-	O
Mechanical overload protection (backlash free-ball model)		-	O
Control panel to AS/NZS 3000, 316SS enclosure with inner door, IP56 for outdoor installation, touch screen interface, supplied loose, field wiring between control panel and equipment by others		-	O

Disclaimer: We continuously update and improve our products and services, contact us for more detailed information or to confirm specifications. MAK Water takes no responsibility for any errors resulting from the use of information contained on this website.
