Static Bow Screen

The Static Bow Screen (Product ID: GST) is a simple and economical solution for separation and screening of solids from process water and wastewater.

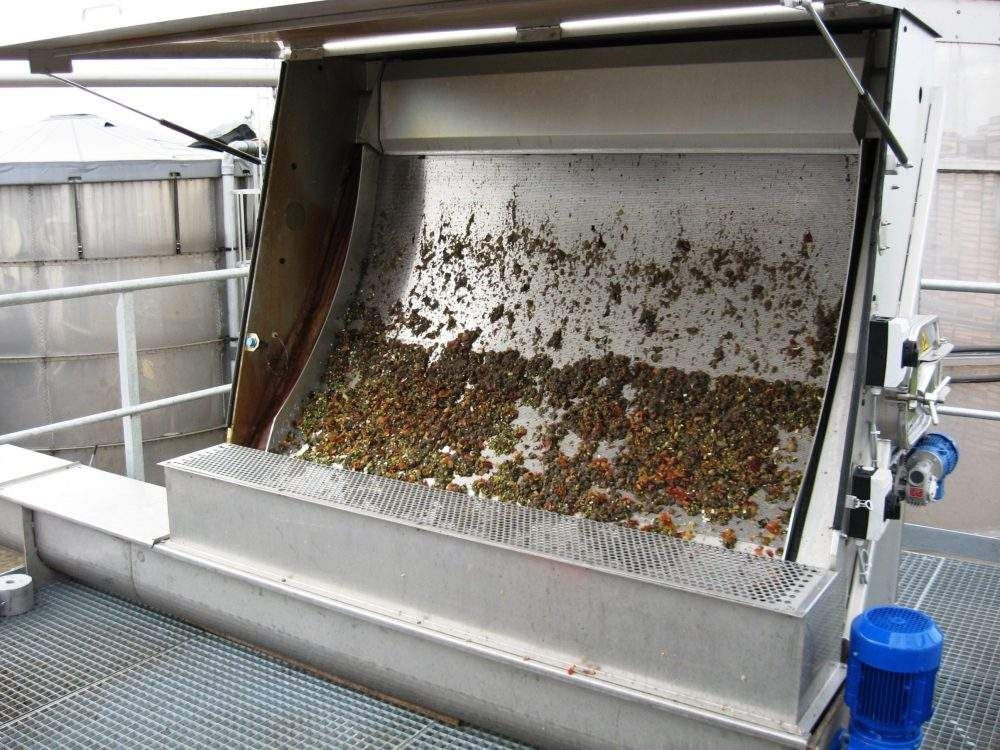

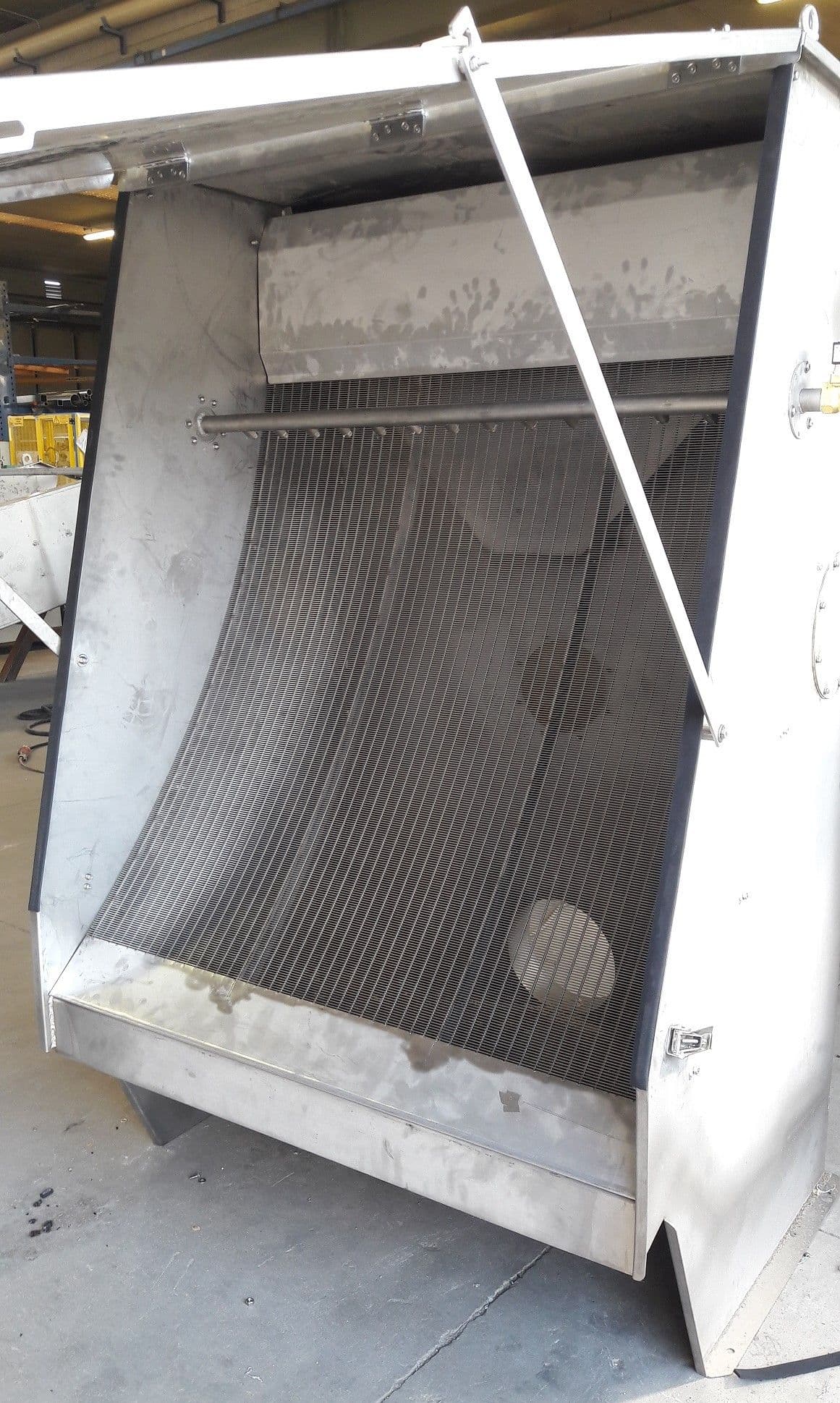

Static Bow Screens are free standing units that use a wedge-wire screen element for solids removal. The wedge-wire screen element is formed with a curved radius and is mounted in a stainless-steel housing. This allows for maximum hydraulic capacity and the driest possible solids after separation.

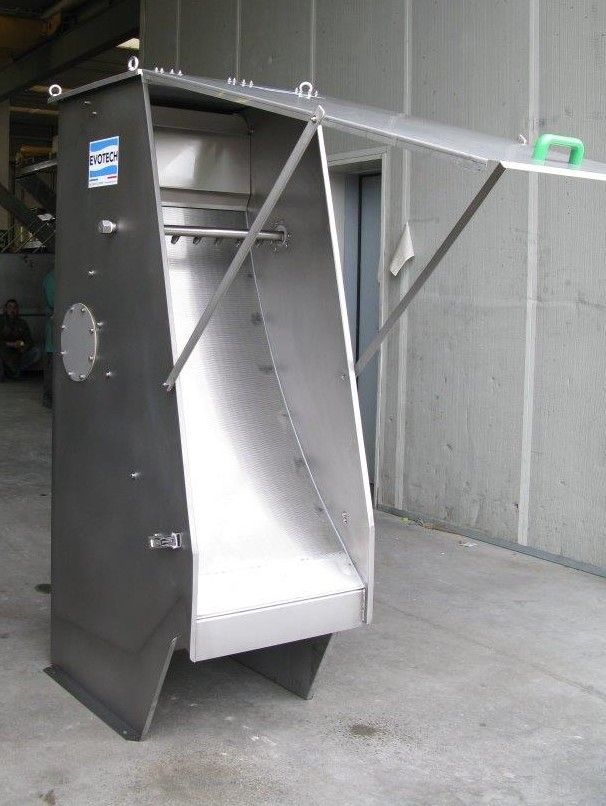

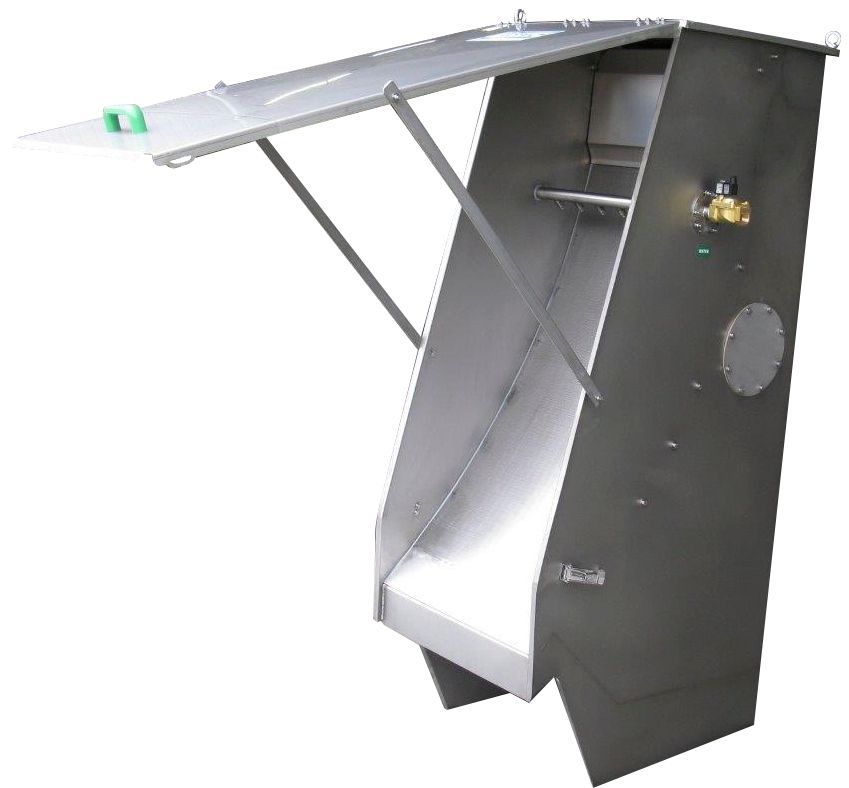

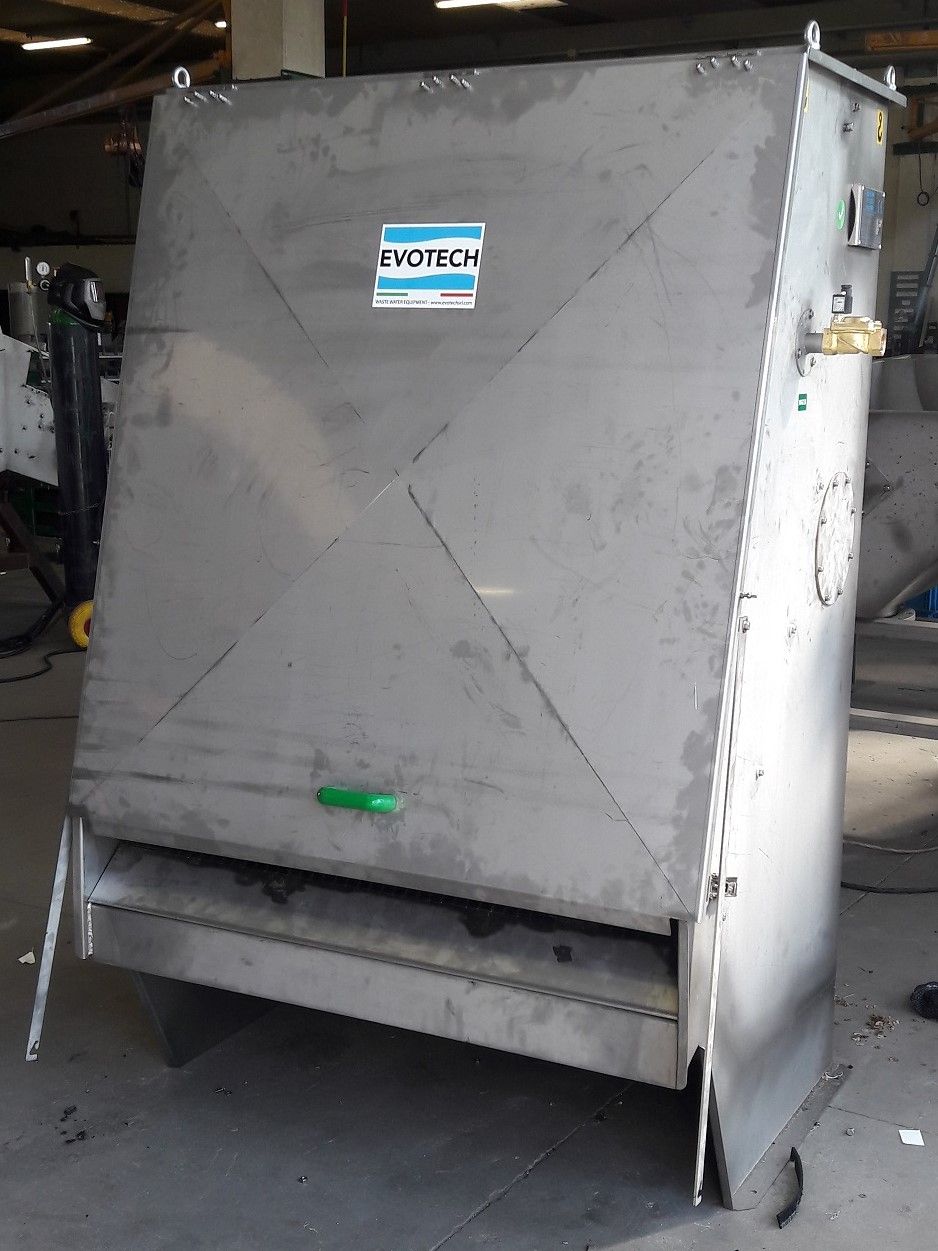

The GST Static Bow Screen is offered with optional hinged cover and external washing bar that can be fitted with a solenoid valve for automated washing of the screen element.

Key Features

Low investment cost
Simple installation and operation
Very low maintenance
Suitable for fluctuating solids and flow rates

Applications

Vegetable and fruit processing
Meat and poultry processing
Fish and shellfish processing
Brewing, malting and beverage industry
Paper & pulp industry
Mining & minerals
Waste recycling
Municipal sewage

Technical Specifications

Standard Specifications

✓ = Standard Supplyo = Optional Supply- = Not Applicable

Parameter			Units	GST-600	GST-1200	GST-1800
Treatment Capacity	Wedge-wire screen element slot opening (mm)	0.25	m3/h	19	40	60
		0.50		35	73	110
		0.75		47	99	149
		1.00		57	119	179
		0.25		65	136	220
		1.50		71	149	220
		2.00		72	150	2365
Approx. dimensions	Screen element width	E	mm	600	1200	1800
	Overall height	A		1950	1950	1953
	Overall width	W		700	1300	1900
	Overall depth (excluding Inlet/Outlet)	D		950	950	950
	Overall depth (including Inlet/Outlet)	G		1050	1050	1050
	Inlet height	I		1300	1300	1382
	Outlet height	O		300	300	335
Flanged connections*¹	Inlet		DN	100	200	200
Flanged connections*¹	Outlet		DN	200	250	250
Empty weight*²			kg	150	315	460
Washwater requirements, at 3 bar pressure*³			L/min	23

*1 Flanges are stainless steel lap joint type, 15mm thick, with PN10 holes according to AS4087.

*2 Weight for standard unit without optional hinged cover.

*3 For optional washing bar.

Standard Inclusions and Options

Equipment		Standard Supply	Optional Supply
Free Standing		✓	-
Machine carpentry, flanges, optional hinged cover and optional washing bar. All bolts in A4(SS316)	SS304L	✓	-
	SS316L	-	o
Hinged cover		-	o
Washing bar with manual valve		-	o
Solenoid valve kit for washing bar 24VDC		-	o
Surface treatments*¹		✓	-

*1 Stainless steel parts: stripping with acid solution, passivation with glass particles, final surfaces cleaning with anti-dust oil.

Disclaimer: We continuously update and improve our products and services, contact us for more detailed information or to confirm specifications. MAK Water takes no responsibility for any errors resulting from the use of information contained on this website.

"We are very pleased with the performance of the Bow Screen and I would recommend MAK Water to other industry facilities looking for a similar solution."

The Bow Screen developed by MAK Water screens off grass clippings from the wash-bay water and significantly reduces the volume that passes through the separator and surrounding infrastructure. This ensures the wastewater is able to be treated to a level suitable for discharge.

Pennant Hills Golf Club
