Moving Bed Bioreactor Plus

MAK Water’s Moving Bed Bioreactor Plus (MBBR+) type packaged sewage treatment plants are designed to treat domestic strength sewage, to achieve “Class C” treated effluent, plus enhanced nutrient removal, suitable for reuse in “risk category low” applications or for discharge to environment. With the optional “Class A” upgrade, treated effluent suitable for reuse in “risk category medium” applications is achieved.

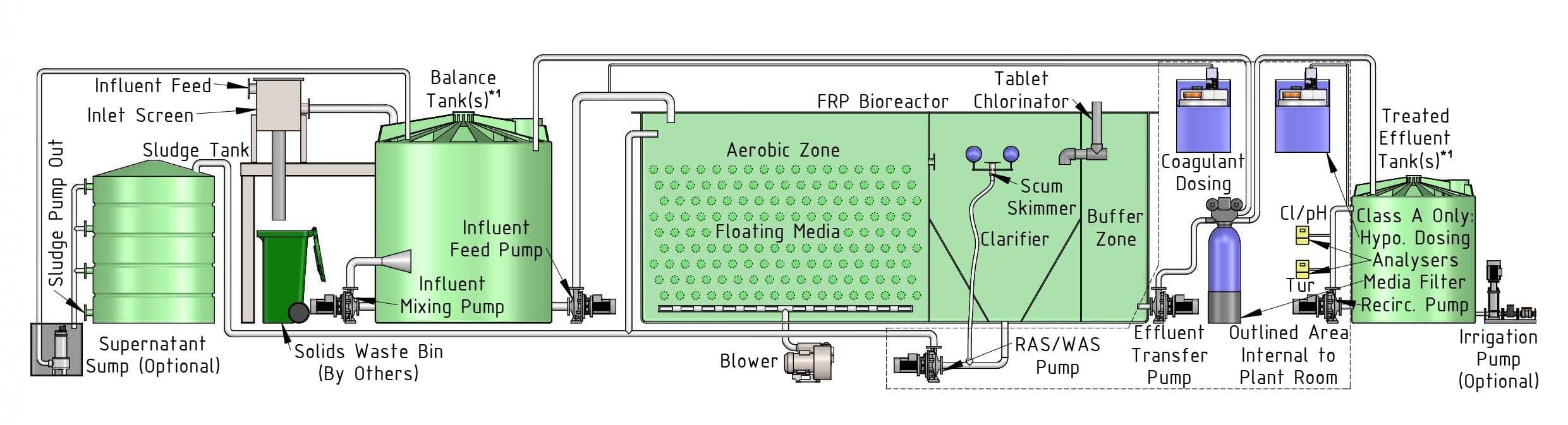

The standard treatment process includes influent screening, balance tank mixing, anoxic & aerobic treatment for nitrification and denitrification, clarification, effluent sterilization (chlorine tablets) and bag filtration (100 micron). The optional “Class A” upgrade includes an auto-backwashing aseptic glass media filter (5 micron), secondary chlorination via tank recirculation and residual trim hypochlorite dosing, and analyzers for online monitoring of treated effluent turbidity, free chlorine and pH.

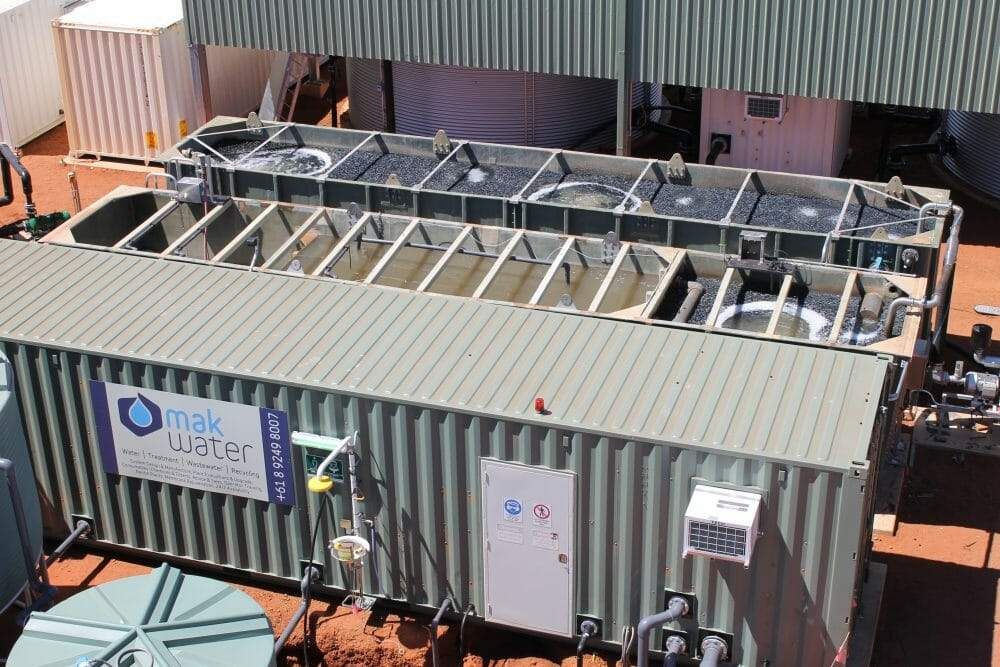

MAK Water’s MBBR+ Bioreactors are corrosion resistant , and are self-contained, modular systems for easy deployment to remote locations.

Technical Specifications

Standard Specifications

Parameter		Units		MBBR+090	MBBR+125	MBBR+175		MBBR+250	MBBR+300
Treatment capacity (min/max)		m³/day		22.5 / 90	31.3 / 125	43.8 / 175		62.5 / 250	75 / 300
*¹Balance tank volume (recommended)		m³		125	160	250		343	413
*¹Treated effluent tank volume (recommended)		m³		90	125	175		250	300
Sludge tank volume		m³		22.5		32	50
Sludge waste volume (min/max)		m³/month		2.7 / 11.0	3.0 / 12.2	5.3 / 21.3		7.6 / 30.4	9.9 / 39.5
*²Irrigation pump duty		m³/hr @ 350 kPa		11.25	15.63	21.88		31.25	37.5
Ambient temperature (min/max)		°C	1 ~ 43
Power supply		-	AC 380~450 V, 3 Phase, 50/60 Hz
Power consumption	Class C (max)	kW		16.5	25.5	33.5		48.5	63.5
	Class A (max)	kW		19.5	27.5	36.5		53.5	68.5
	*²Irrigation pump	kW		4	5.5	7.5		11	15
Footprint	FRP bioreactor(s) & access platform(s)	m		12 x 3.2	12 x 5.6	12 x 5.6		12 x 8.8	12 x 8.8
Footprint	Containerised plant room	m		6 x 2.4	*³N/A	6 x 2.4		*³N/A	6 x 2.4

Characteristics	Units	Influent	* ³ Class C effluent	* ³ Class A effluent
Temperature	°C	15~45	-
pH	pH units	6.5~8.5	6.5~8.5
Biological oxygen demand (BOD)	mg/L	*⁵≤350	<20
Suspended solids (TSS)	mg/L	*⁵≤350	<30	<10
Oil & grease	mg/L	<10	-
Total nitrogen (T-N)	mg/L	<80	<10 (or 70 mg/L reduction from influent value)
Total phosphorus (T-P)	mg/L	<16	1~2 (variable according to coagulant dose rate)
Total dissolved solids (TDS)	mg/L	<2,000	-
Turbidity	NTU	-	N/A	<5 (95%ile)
E.Coli	cfu/100 mL	-	<1,000	<10
Free chlorine	mg/L	-	0.2~2

*¹ Sold separately, *² Optional equipment, *³ Plant room integral to FRP bioreactor, *⁴ Based on QLD guidelines, *⁵ Referenced from Metcalf & Eddy (5th edition, 2014), Typical composition of untreated domestic wastewater; higher/lower design values available on request.

Technical Specifications

Standard Inclusions and Options

✓ = Standard Supplyo = Optional Supply- = Not Applicable

Equipment			MBBR+90	MBBR+125	MBBR+175	MBBR+250	MBBR+300
Automatic inlet screen (2 mm)			✓	✓	✓	✓	✓
Influent mixing pump			✓	✓	✓	✓	✓
Influent feed pump			✓	✓	✓	✓	✓
FRP bioreactor with access platform & ladder	Aerobic zones with submersible aerators & MLR pump		✓	✓	✓	✓	✓
	Anoxic zone with submersible mixing pump		✓	✓	✓	✓	✓
	Aerobic zone 2 with submersible aerator		✓	-	-	-	-
	Clarifier with scum removal system		-	✓	✓	✓	✓
	Clarifier with tube settler & scum removal system		✓	✓	✓	✓	✓
	Chlorine contract zone with tablet chlorinator		✓	✓	✓	✓	✓
	Bioreactor roofing (COLORBOND® steel sheeting)		o	o	o	o	o
Plant room with overhead lighting and GPO for maintenance	Chemical dosing – coagulant, sucrose & caustic		✓	✓	✓	✓	✓
	RAS/WAS pump		✓	✓	✓	✓	✓
	Effluent transfer/filter feed pump		✓	✓	✓	✓	✓
	Class C	Bag filter (100 µm)	✓	✓	✓	✓	✓
	Class A	Auto-backwashing aseptic glass media filter (5 μm)	o	o	o	o	o
		Treated effluent tank recirculation pump	o	o	o	o	o
		Residual trim hypochlorite dosing	o	o	o	o	o
	PLC control system with HMI		✓	✓	✓	✓	✓
Sludge tank with supernatant sampling points and discharge valves			✓	✓	✓	✓	✓
Supernatant sump with submersible pump and level control			o	o	o	o	o
Irrigation pump with level control and mechanical flow totaliser			o	o	o	o	o
Instrumentation	Standard package		✓	✓	✓	✓	✓
Instrumentation	Premium package with ClearAccess™ remote monitoring		o	o	o	o	o

Instrumentation & Controls		Standard Package	Premium Package
Balance & chlorine contact tank float level switches		✓	-
Chemical dosing & sludge tank float level switches		✓	✓
Pressure switches		✓	✓
Pressure gauges		✓	✓
Magnetic flow transmitters (influent feed pump and MLR pump)		✓	✓
Aerobic tank dissolved oxygen analyser		✓	✓
Aerobic tank pH analyser		✓	✓
Class A only	Aseptic glass media filter pressure transmitter	✓	✓
	Treated effluent chlorine & pH analyser	✓	✓
	Treated effluent turbidity analyser	✓	✓
Variable speed drives	Influent feed pump	✓	✓
	MLR pump	✓	✓
	Aeration blower	✓	✓
Balance & chlorine contact tank level transmitters		-	✓
ClearAccess™ remote monitoring & control capabilities		-	✓

Sewage Treatment for Mining Camp

Mining

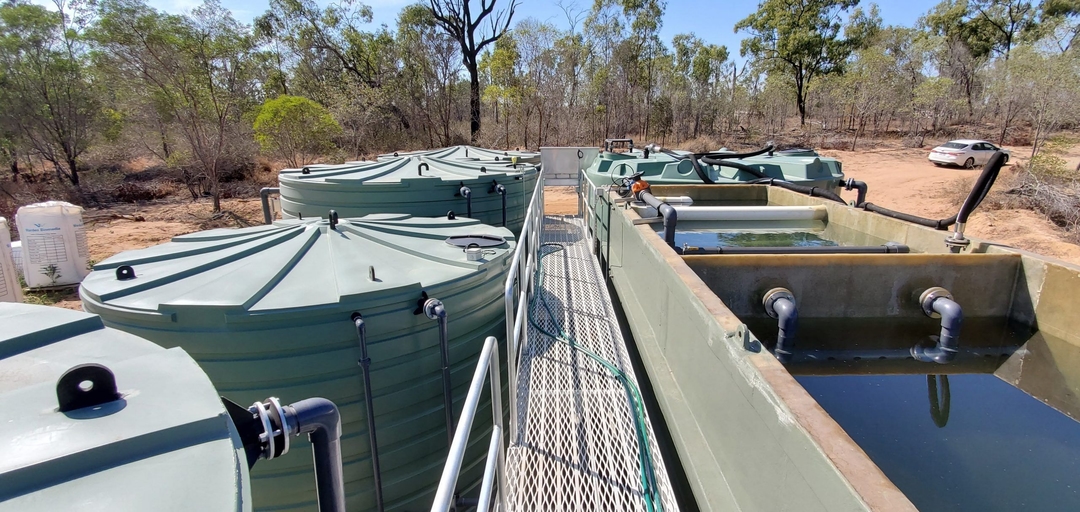

A mining camp in North Queensland needed to replace their existing sewage treatment plant as it was over 20 years old. MAK Water was engaged to provide a turnkey solution for the replacement plant including design, manufacture, onsite civils works, installation, commissioning, and operator training. MAK Water’s 20-year design life using FRP tanks for the sewage treatment plant was selected to provide a complete design, manufacture, and installation package for the replacement sewage treatment plant.

Moving Bed Bioreactor Plus

Queensland

Remote Camp Water and Wastewater Treatment

Mining

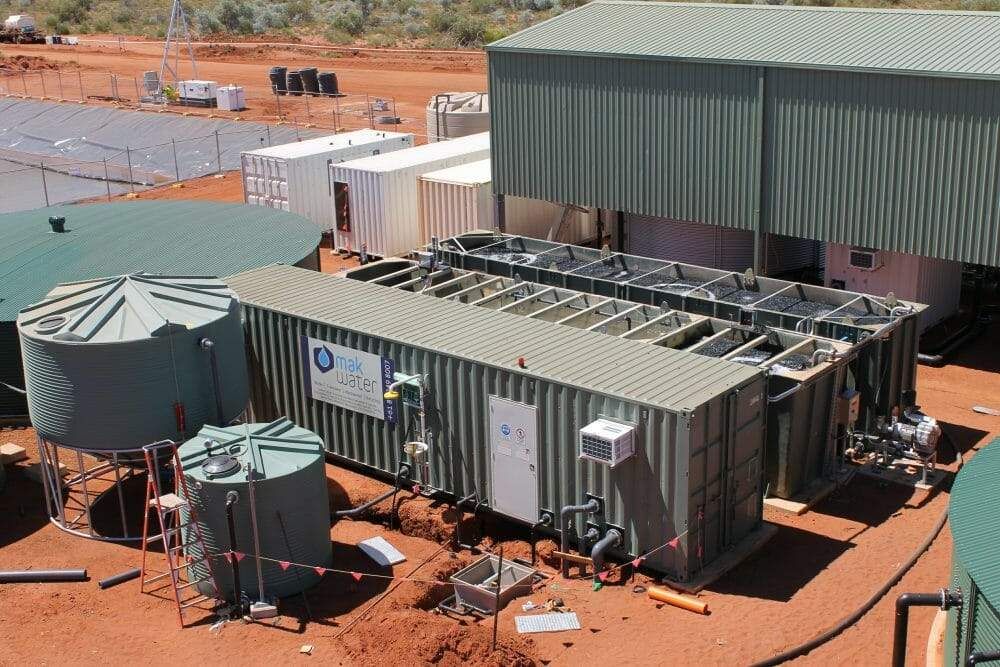

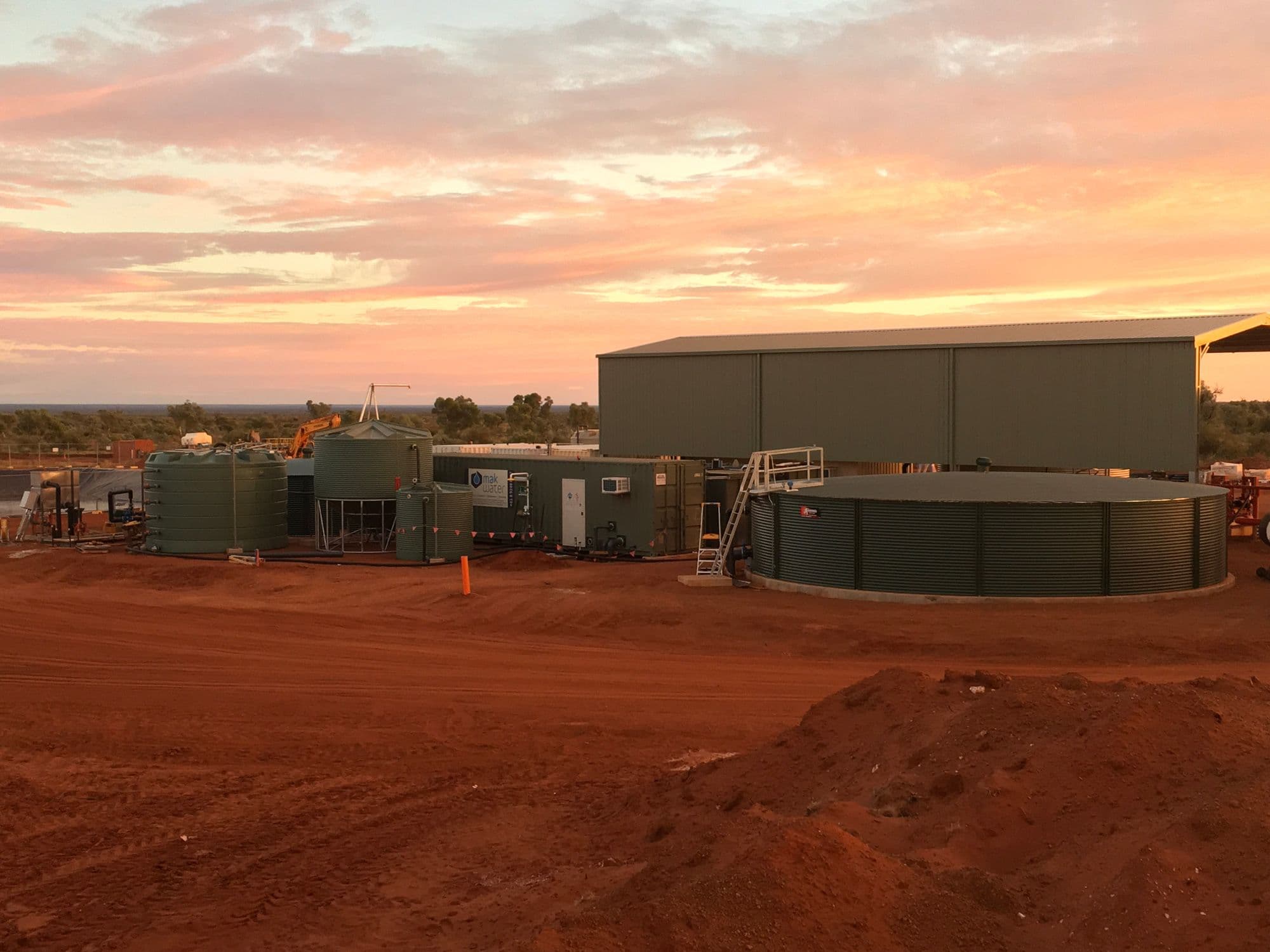

Sulphate of Potash (SOP) was identified by Geoscience Australia as a critical mineral for the country’s future; however, prior to 2021, Australia was entirely dependent upon imported product. Australia’s first sulphate of potash (SOP) project, located in the Goldfields region of Western Australia, reached practical completion in July 2021, and will produce 245kt per annum. MAK Water was originally approached by the client’s engineering consultant to assist with equipment selection and pricing during the feasibility study phase. Once project finance was secured, the client engaged MAK Water directly to design, manufacture, install and commission the potable water treatment plant (PWTP) and sewage treatment plant (STP) to service the 350-room accommodation village.

Moving Bed Bioreactor PlusBrackish Water Reverse Osmosis

Goldfields, Western Australia
