pH Adjustment - Flow Paced

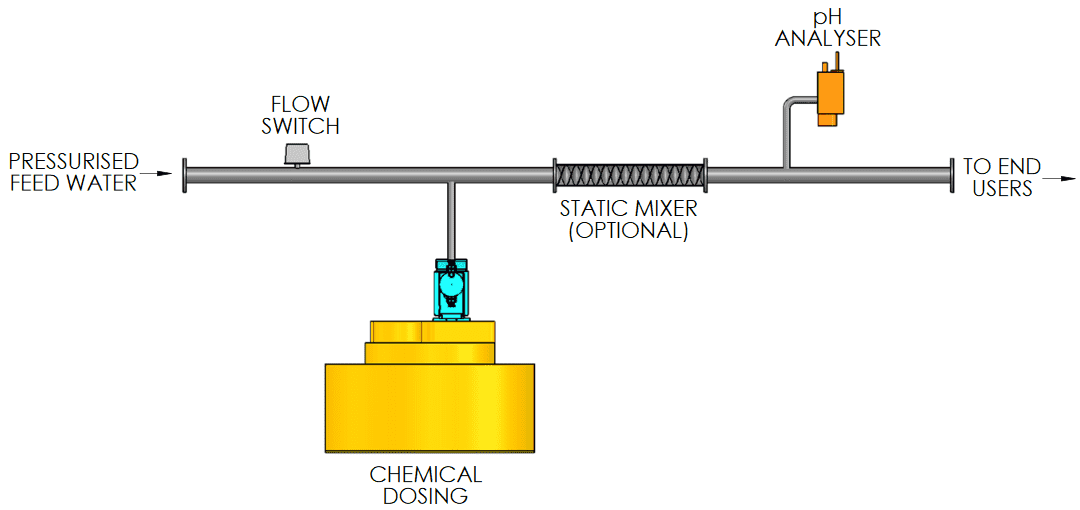

MAK Water’s pH Adjustment – Flow Paced (PAF) plants are designed to automatically adjust and maintain the pH level of pressurised raw water prior to discharge to sewer/environment or reuse/recycling. The standard treatment process includes an inline pH analyser which monitors the pH level and a dosing pump to automatically dose liquid alkali/acid. Dual chemical dosing pumps (alkali/acid) are available for when the raw water pH varies to allow for correction of both low and high pH raw water.

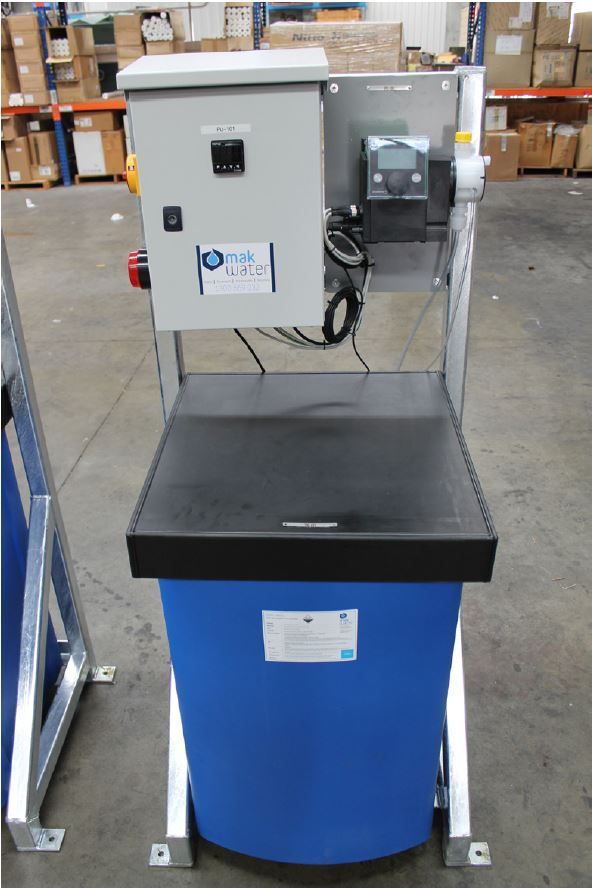

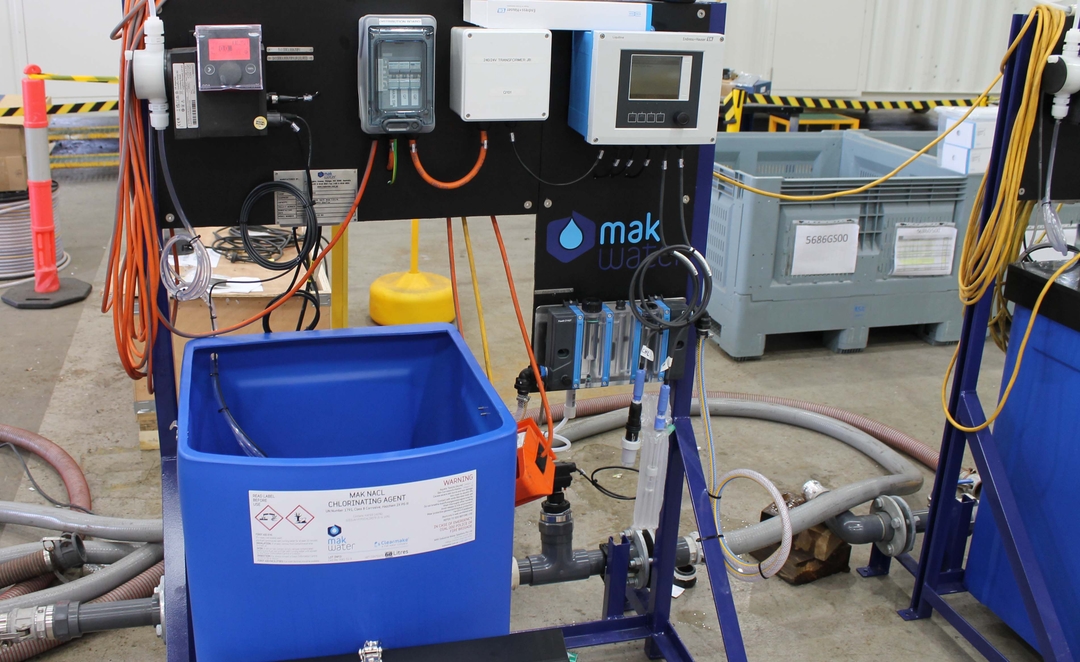

The system components are sized to suit the raw water flow rate and daily usage. Optional equipment upgrades include a flow transmitter, a static mixer if required to improve mixing, duty standby dosing pumps, dual chemical dosing pumps (alkali/acid). MAK PAF plants are available as skid mounted or containerised systems for easy deployment to remote locations.

Technical Specifications

Standard Specifications

Parameter	Units	PAF-60	PAF-100	PAF-200	PAF-500	PAF-1000	PAF-2500	PAF-5000
Chemical Storage Tank Size	L	60	100	200	500	1,000	2,500	5,000
pH Level (target)	pH	6 ~ 8 (pH neutral) or as required
Raw Water Temperature	°C	15 ~ 35
Ambient Design Temperature	°C	5 ~ 45 (-5 ~ 50 for insulated containerised system)
Raw Water Flow Rate (max)	m³/hr	1,000 (higher flow available on request)
Raw Water Pressure (max)	kPa	600 (higher pressure available on request)
Power Supply	-	AC 240V, 1 phase, 50Hz
Power Consumption (approx.)	kW	0.5
Container Size (optional)	ft	10	10	10	10	10	20	20
Skid Size	mm	1,300 x 600 x 1,500				2,000 x 1,500 x 1,500

Standard Inclusions and Options

✓ = Standard Supplyo = Optional Supply- = Not Applicable

Equipment	PAF-60	PAF-100	PAF-200	PAF-500	PAF-1000	PAF-2500	PAF-5000
Skid Mounted Plant	✓	✓	✓	✓	✓	✓	✓
Chemical Dosing Pump	✓	✓	✓	✓	✓	✓	✓
Bunded Chemical Storage Tank	✓	✓	✓	✓	✓	✓	✓
pH Analyser	✓	✓	✓	✓	✓	✓	✓
Control System with Local Indicator (standard)	✓	✓	✓	✓	✓	✓	✓
Containerised System c/w A/C & Lights	o	o	o	o	o	o	o
Container Non-slip Floor Coating	-	-	-	-	-	o	o
Container Insulation (walls & ceiling)	o	o	o	o	o	o	o
Container Side Access Door	-	-	-	-	-	o	o
Duty Standby Dosing Pumps	o	o	o	o	o	o	o
Static Mixer	o	o	o	o	o	o	o
Dual Chemical Dosing (acid & alkali)	o	o	o	o	o	o	o
Safety Shower & Eyewash Station	o	o	o	o	o	o	o
PLC Control System with HMI	o	o	o	o	o	o	o
Alarm Signal Output for Client Interface	o	o	o	o	o	o	o
Premium Instrumentation Package	o	o	o	o	o	o	o

Instrumentation	Standard Package	Premium Package
Flow Switch	✓	✓
Float Switch (chemical storage tank)	✓	✓
Level Transmitter (4-20 mA, chemical storage tank)	-	✓
pH Analyser (4-20mA)	✓	✓
Flow Transmitter	o	o
Temperature Sensor & Alarm	o	o
Data Logger (pH level)	-	✓
Remote Monitoring & Control Capabilities	-	✓

Disclaimer: We continuously update and improve our products and services, contact us for more detailed information or to confirm specifications. MAK Water takes no responsibility for any errors resulting from the use of information contained on this website.

Data sheet Process Document
